ProyectECU Berserker, Spartan and Titan
The new ECUs that ProyectECU has for you
Spartan 2.0
A simple but powerful programmable computer!
Full Stand alone motor control, It is programmed with TunerStudio.
Stand Alone Spartan motor control with new 5x faster processor!!
Full sequential injection and ignition up to 4 cylinders (8 cylinders in pairs)
The ECU comes ready to use VR (reluctant), Hall or Optical type CKP Sensor.
Consists of internal 4Bar MAP (up to 45psi)
The kit includes:
– Spartan ECU
– 1m 24-wire harness
- USB Cable
– Software and manuals in downloads area
List of Inputs and Outputs
-16×16 3D fuel and ignition maps, with base of either TPS (Alpha-N) or MAP (Speed Density)
-After Start Enrichment
-Rev limiting (Spark based, hard and soft)(flames, explosions)
-Cranking specific enrichment, dwell timing and advance
-General logging through TunerStudio
-High speed tooth logging
-TPS calibration through TunerStudio
-Sensor calibration through TunerStudio (Coolant, IAT and O2)
-Warm Up Enrichment (WUE)
-TPS based acceleration enrichment
-Tacho output
-Fuel pump activation/deactivation (With priming)
-Over dwell and over duty protection
-Battery voltage compensation for dwell and injectors
-Modular wheel decoder support.
-Closed loop boost control
-Open loop VVT control
-Deceleration fuel cut-off (DFCO)
-Launch control
-O2 based autotune (Registered version of TunerStudio required)
Berserker 2.0
A very complete and compact programmable computer!
Control for Full Stand alone motor, It is programmed with TunerStudio via Bluetooth.
Berzerker Stand Alone motor control
RECOMMENDED MODEL FOR UP TO 8 CYLINDERS
The ECU comes ready to use VR (reluctant), Hall or Optical type CKP Sensor.
Consists of internal 4Bar MAP (up to 45psi)
The kit includes:
– Berzerker ECU
– 1m 32 wire harness
– Bluetooth connection
– Software and manuals in downloads area
List of Inputs and Outputs
-16×16 3D fuel and ignition maps, with base of either TPS (Alpha-N) or MAP (Speed Density)
-After Start Enrichment
-Rev limiting (Spark based, hard and soft)(flames, explosions)
-Cranking specific enrichment, dwell timing and advance
-General logging through TunerStudio
-High speed tooth logging
-TPS calibration through TunerStudio
-Sensor calibration through TunerStudio (Coolant, IAT and O2)
-Warm Up Enrichment (WUE)
-TPS based acceleration enrichment
-Tacho output
-Fuel pump activation/deactivation (With priming)
-Over dwell and over duty protection
-Battery voltage compensation for dwell and injectors
-Modular wheel decoder support.
-Closed loop boost control
-Open loop VVT control
-Deceleration fuel cut-off (DFCO)
-Launch control
-O2 based autotune (Registered version of TunerStudio required)

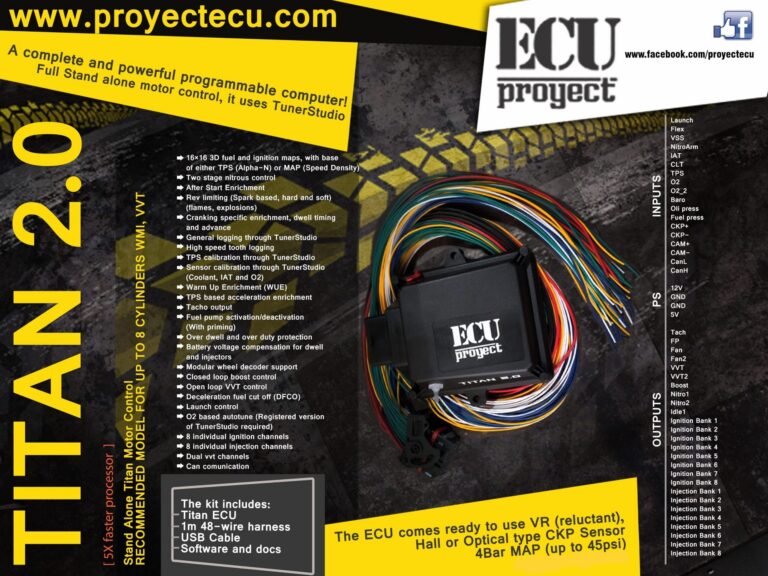

Titan 2.0
An extreme and powerful programmable computer!
Full Stand alone motor control, It is programmed with TunerStudio.
Stand Alone Titan motor control with new 5x faster processor!!
Full sequential injection and ignition up to 8 cylinders
The ECU comes ready to use VR (reluctant), Hall or Optical type CKP Sensor.
Consists of internal 4Bar MAP (up to 45psi)
Stepper Optional
The kit includes:
– Titan ECU
– 1m 48-wire harness
- USB Cable
– Software and manuals in downloads area
List of Inputs and Outputs
-16×16 3D fuel and ignition maps, with base of either TPS (Alpha-N) or MAP (Speed Density)
-Two stage nitrous control
-After Start Enrichment
-Rev limiting (Spark based, hard and soft)(flames, explosions)
-Cranking specific enrichment, dwell timing and advance
-General logging through TunerStudio
-High speed tooth logging
-TPS calibration through TunerStudio
-Sensor calibration through TunerStudio (Coolant, IAT and O2)
-Warm Up Enrichment (WUE)
-TPS based acceleration enrichment
-Tacho output
-Fuel pump activation/deactivation (With priming)
-Over dwell and over duty protection
-Battery voltage compensation for dwell and injectors
-Modular wheel decoder support.
-Closed loop boost control
-Open loop VVT control
-Deceleration fuel cut-off (DFCO)
-Launch control
-O2 based autotune (Registered version of TunerStudio required)
